The air leaving your system is 55°F. What reaches your room is another story.

Calculated, not estimated

This is not estimating. It is not pulling numbers from a tonnage chart. Every supply run is calculated based on what that specific room requires. Duct installation done this way produces even temperatures across every room in the house. It also produces a system that passes California's HERS duct leakage test, the mandatory third party inspection required under Title 24 for new duct installations throughout most of Los Angeles.

If your home doesn't have ductwork yet, or if you're replacing a system that was never designed correctly, this is where comfort starts.

Local conditions

Los Angeles attics create a duct problem that most homeowners never see

LA's summer attics are among the harshest environments any residential duct system will face.

On a July afternoon in the San Gabriel Valley or the South Bay, attic temperatures routinely climb past 140°F. That number matters for one specific reason: flex duct, the flexible insulated duct product used in most residential installations, runs through that attic space on every supply run. When flex duct is kinked, compressed, or routed in long, sagging runs through extreme heat, two things happen. Airflow drops from friction. Heat bleeds through the insulation.

The result is measurable. An air handler delivering 55°F supply air can produce 68°F air at a bedroom vent two duct runs away. That 13 degree loss is not a refrigerant problem. It is a layout and insulation problem.

Here's what most homeowners in Los Angeles don't realize: duct insulation R-value matters far more in this climate than in most of the country. Standard R-6 flex duct loses significantly more heat to a 140°F attic than R-8 material would. Mister Cool California specs R-8 insulated flex duct on attic runs by default, not as an upgrade.

We serve homes across Culver City, El Monte, Torrance, Downey, and throughout the Westside and Inland Empire where aging or absent ductwork is one of the most common barriers to consistent indoor comfort.

See ductwork repair and replacement

From the field

What I found in a Culver City bungalow that changed how I look at flex duct

The duct system itself was only seven years old. The comfort problem started the day the original system was commissioned.

I'm walking through a 1947 Culver City bungalow, and a homeowner there had been told for three straight summers that her AC "just wasn't powerful enough" for the square footage. She'd had the refrigerant checked twice. Both times it came back fine. The system was a properly sized 3 ton unit. And still, the back bedroom sat at 82°F on afternoons when the living room was 73°F.

I pulled the attic hatch and found the problem immediately. The flex duct run serving that back bedroom was 34 feet long, kinked at a 90 degree angle near the air handler, and sagging badly between two joists in the middle section. The compression at the kink had reduced the effective diameter by nearly half. That run was delivering a fraction of the airflow it was designed to carry.

I also checked the return air plenum, the low pressure side of the duct system that draws air back to the air handler for reconditioning. The return was a single 16x20 grille pulling from the hallway. The back bedroom had no return path at all. Air was pressurizing in that room and stalling.

We redesigned that duct system using Manual D calculations. New trunk line sizing, properly supported flex runs, a dedicated return path for the back bedroom, and R-8 insulation throughout the attic section. First week after the job: both rooms within one degree of each other. The 3 ton unit the homeowner was told was undersized had been the right size all along. The ductwork had been the problem from day one.

That job is why I walk every attic before I quote a duct project. The ceiling tells part of the story. The attic tells the rest.

See duct sealing and leak testing

Code compliance

Title 24 compliance is built into every job, not added at the end

California's duct leakage requirements aren't optional, and we build every installation around passing them the first time.

Title 24, California's Building Energy Efficiency Standards, requires a HERS duct leakage test on new ductwork installations in most Los Angeles jurisdictions. The HERS duct leakage test is a mandatory third party inspection that measures how much air escapes from the duct system before it reaches the living space. The state sets maximum leakage limits; failing the test means rework before the permit can close.

We treat the HERS test as a design requirement from the first measurement, not something to address after installation is complete.

Every duct connection in a Mister Cool California installation is sealed with mastic, a thick, brush applied duct sealant, not just tape. Every penetration through a ceiling or wall is sealed before the test. Joints at the air handler, at every takeoff, and at every register boot are checked before we call for inspection. Our crews hold C-20 license authority (CSLB #1143117) covering this work specifically. We carry a $25,000 surety bond through Nationwide Mutual Insurance. Title 24 compliance is built into every job we run.

Read the Title 24 guide

Design through inspection

How we execute a ductwork installation in Los Angeles

Every ductwork installation follows a defined sequence from design through inspection, nothing skipped.

1. 1

   Diagnostics and design

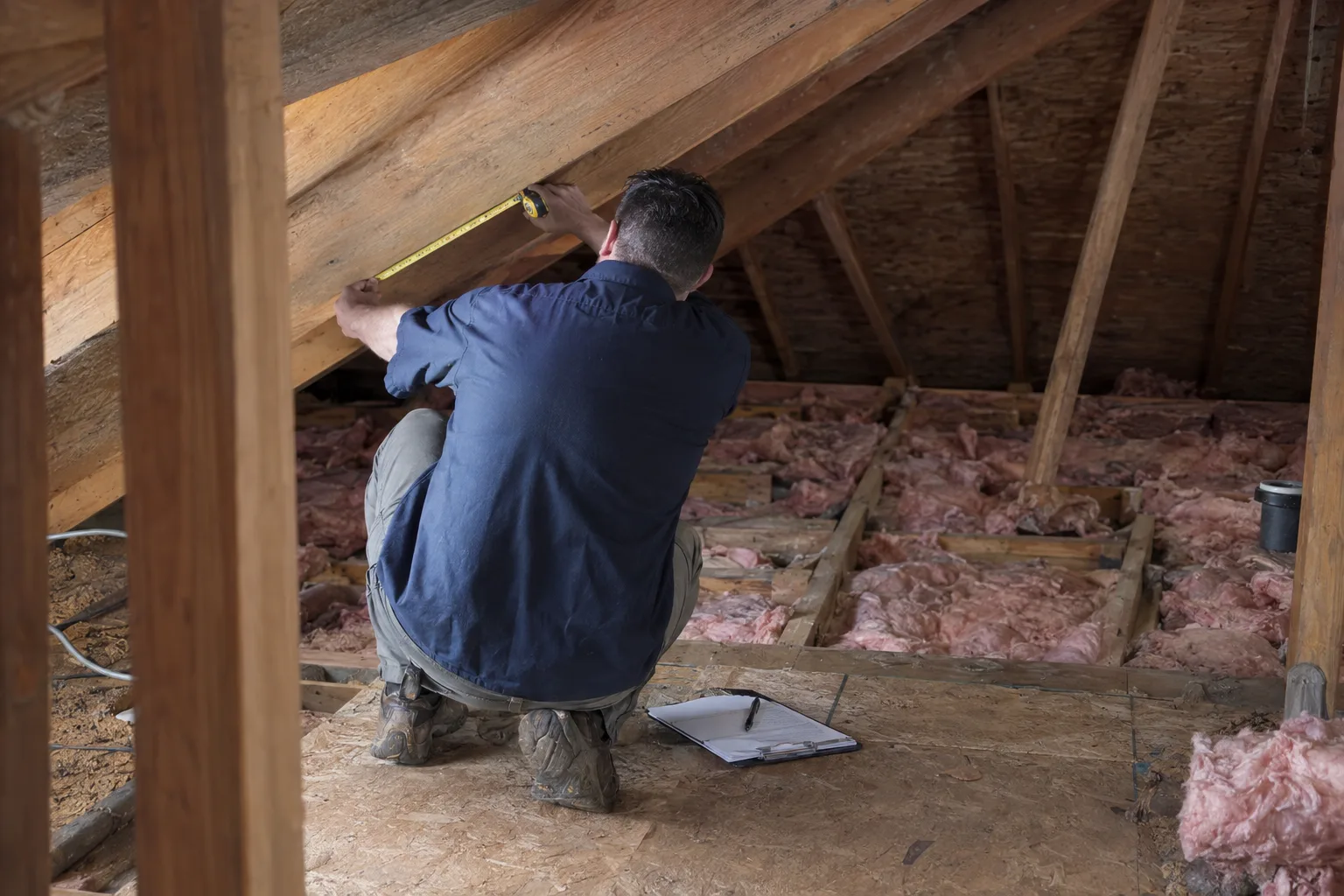

   Every project starts with a site walkthrough. We measure the home's square footage by room, note ceiling heights, identify attic access points and clearances, and check the existing air handler location and electrical service. If a Manual J load calculation has already been completed for the system, we use those room by room airflow targets as the design inputs. If not, we run the load calculation before designing the duct system. Manual D duct design, the companion calculation to Manual J, then determines the correct duct diameter for every branch run, the placement and size of every supply register, and the routing path that minimizes duct length and bends. Attic conditions are documented: insulation depth, temperature exposure, and structural clearances all affect routing decisions.

2. 2

   Installation

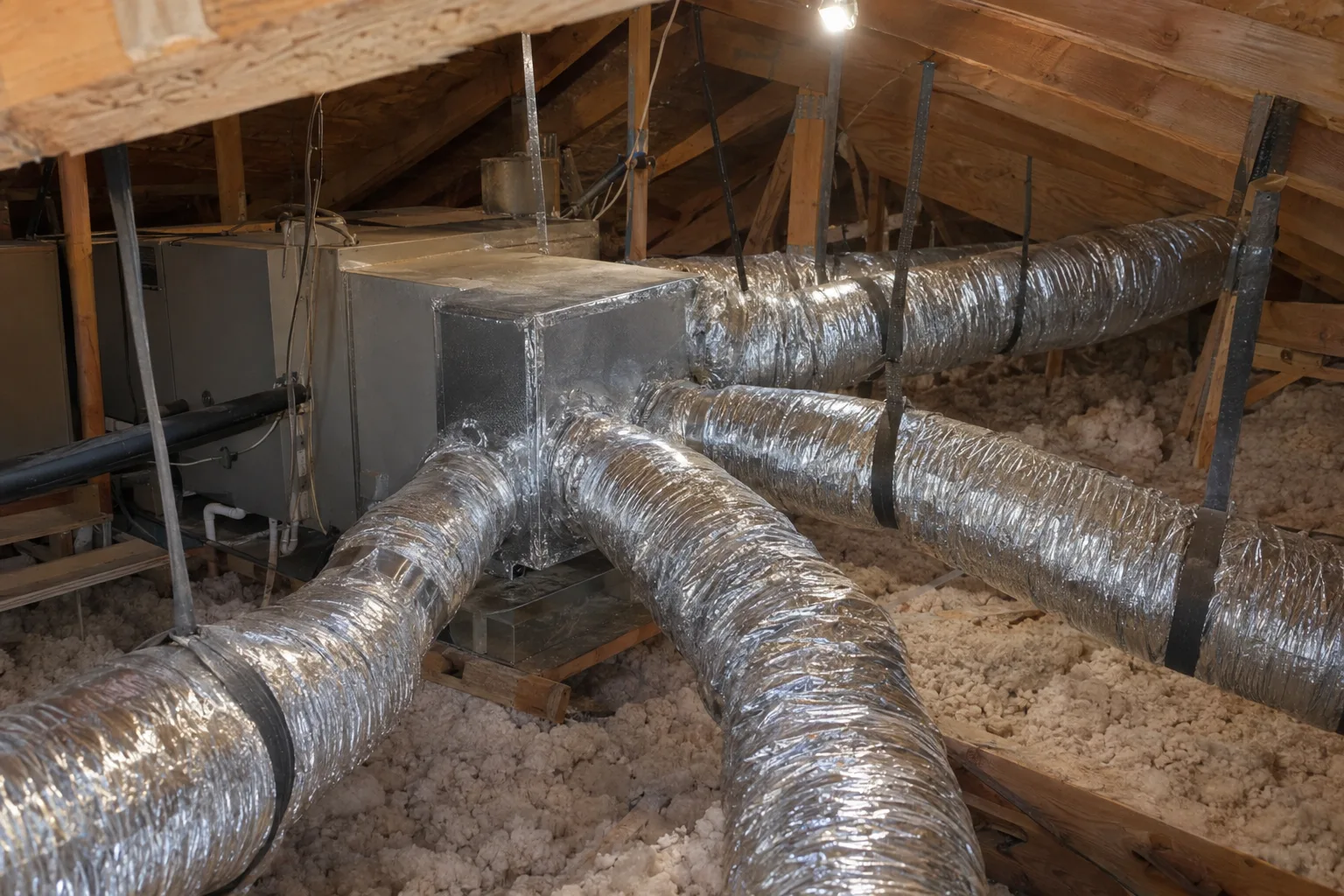

   Trunk lines are installed first. For most Los Angeles homes, the main trunk runs through the attic parallel to the ridge, branching at calculated takeoff points to individual room runs. Sheet metal ductwork handles the trunk. Flex duct, R-8 insulated and properly supported every four feet, handles the branch runs. Every connection point receives mastic sealant and a second mechanical fastener. Supply register locations are cut and framed to spec. Return air pathways are confirmed or built out: no room in the design is left without a functional return path. Boot connections at every register are sealed before the ceiling is closed.

3. 3

   Post installation verification and HERS testing

   Before we call for the HERS duct leakage test, we run our own pre-test check. Every boot, every takeoff, and every access panel is confirmed sealed. The system is pressurized and checked for detectable leakage points. Static pressure at the air handler is measured to confirm the system is operating within designed parameters. When the third party HERS rater arrives, the system is ready. After the test passes and the permit closes, we document the final airflow measurements from each register and provide them to the homeowner, so there is a baseline for any future diagnostic comparison.
