New Construction HVAC Installation in Los Angeles: Designed Before the Walls Close

Design phase

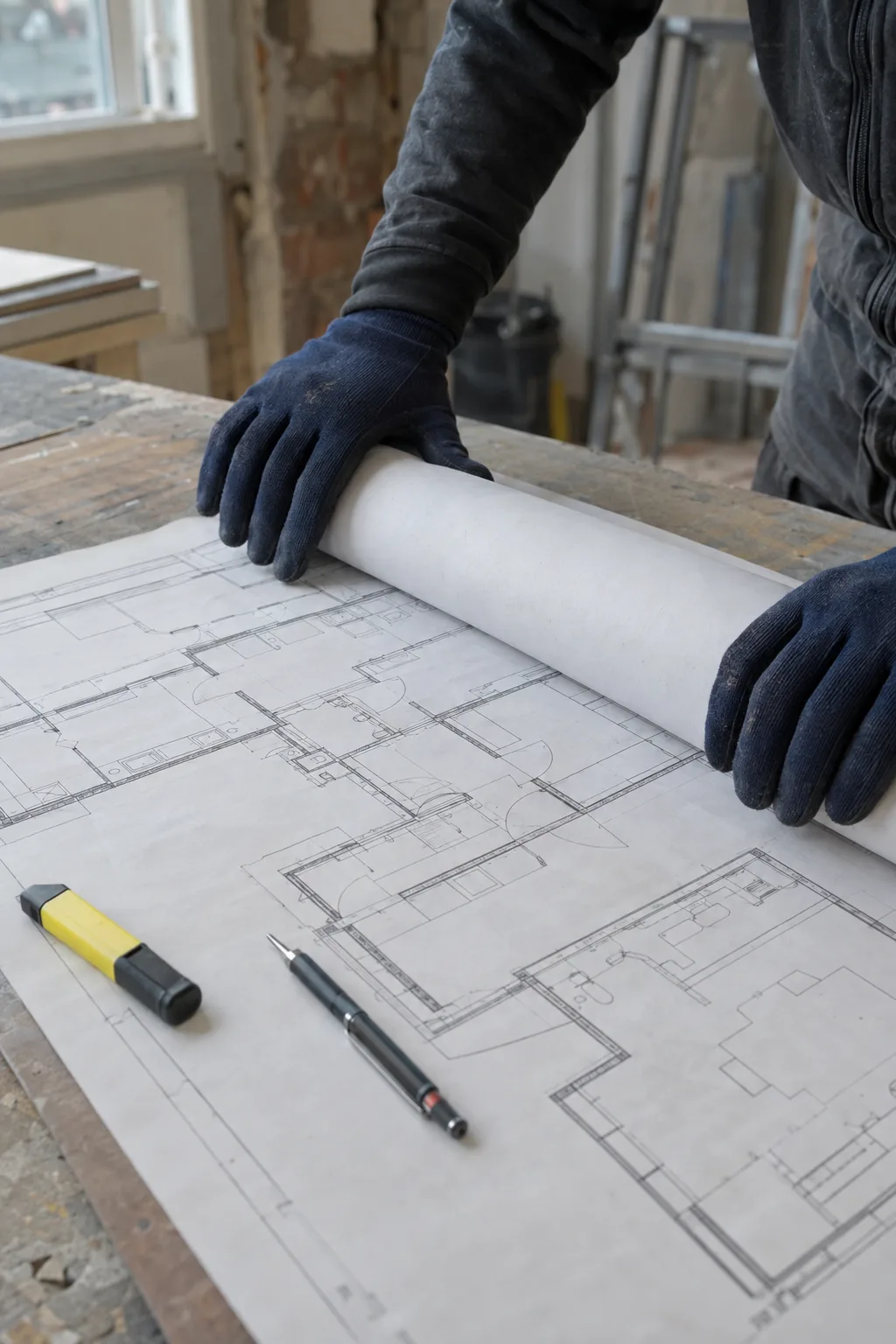

The Right HVAC System Starts at the Blueprint Stage, Not After Framing

New construction HVAC installation in Los Angeles means designing the system around the structure, not squeezing it in afterward.

Mister Cool California coordinates with your build schedule from design phase through final inspection. We perform Manual J load calculations, room-by-room heat gain and heat loss analysis, before a single duct route is committed. The result is a system sized right, routed clean, and Title 24 compliant when LADBS comes to sign off.

See how load calculations work

Local conditions

Los Angeles New Builds Have Unique HVAC Demands That Require Local Knowledge

Los Angeles construction moves fast. Your HVAC contractor has to move with it.

Title 24, California's Building Energy Efficiency Standards, sets strict requirements for every new residential HVAC installation in this state. Equipment efficiency minimums, duct leakage thresholds, and insulation specs all need to be in the design before you pull a mechanical permit through LADBS (Los Angeles Department of Building and Safety).

Here's what builders working in LA's interior zones need to factor in early: cooling load calculations here differ by zone. The San Gabriel Valley, the South Bay, and the Inland Empire each sit in different Title 24 climate zones. A system designed for Pasadena's climate zone 9 won't be code-compliant in Fontana's climate zone 10.

Mister Cool California knows those zone boundaries. We've worked across them. That local precision is built into every load calculation we run.

Understand LA HVAC permits

On a real build

How a Design-First Process Plays Out on a Real LA New Build

Getting into the project early is what separates a clean install from a problem that follows the homeowner for years.

Here's what late-stage HVAC coordination looks like on a two-story floor plan: the framer has closed interior walls, the insulation crew finished ahead of schedule, and the logical return air path runs through a load-bearing wall no one wants to touch.

That's a sequencing problem. And it costs the builder, the homeowner, and the HVAC crew time and money to work around.

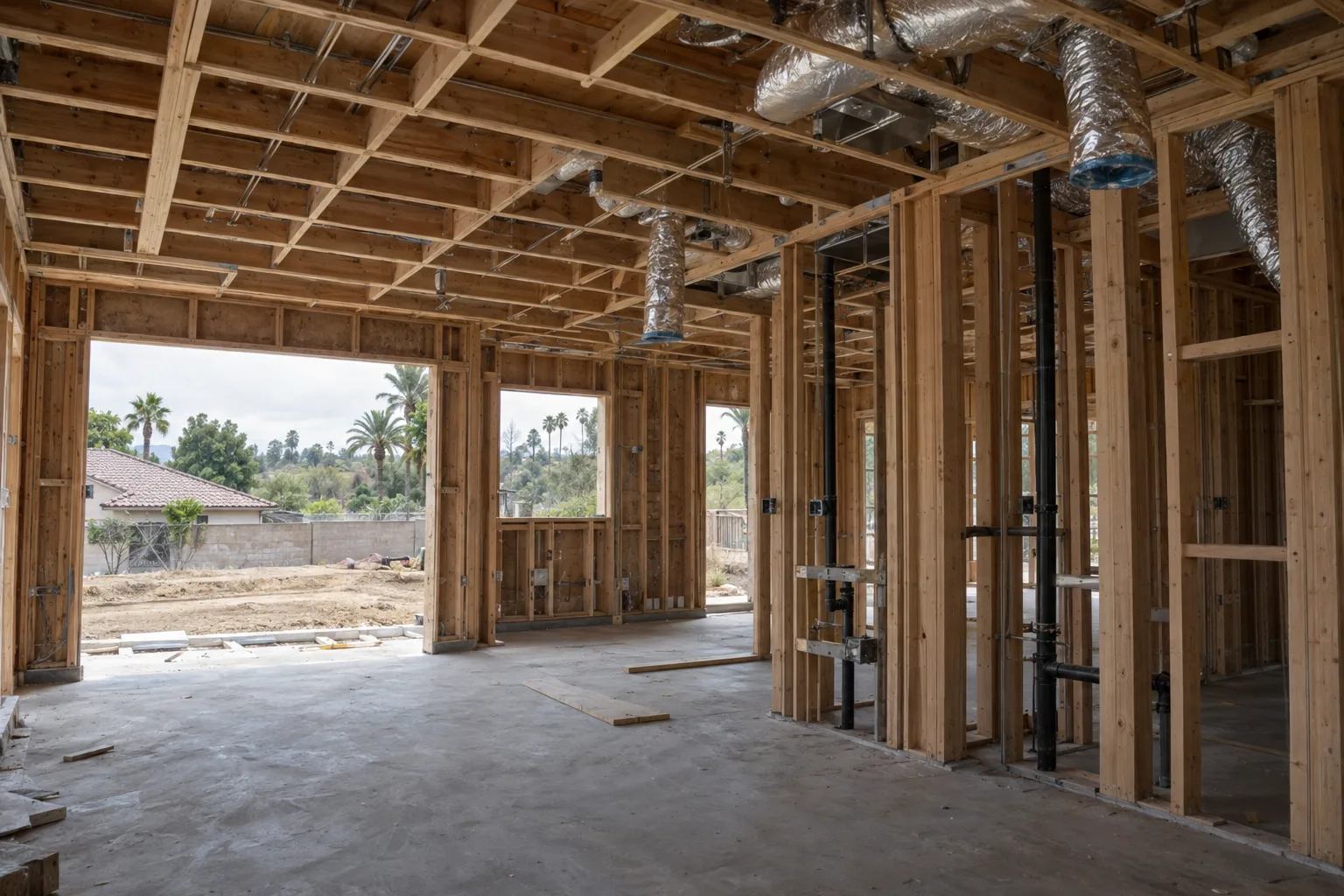

On a recent new construction project in Burbank, we were brought in after framing was underway but before interior walls were drywalled. With that window, we ran Manual D duct design, the engineering process that determines duct sizing, layout, and routing based on the load calculation results, and established duct routes before insulation locked everything in.

The result: every supply register hit its designed CFM target. Duct pressure testing showed leakage at 3.2%, well under California's 6% maximum for new construction. The HERS rater, that's the third-party Home Energy Rating System inspector required by California to verify Title 24 compliance before the building department signs off, cleared the system in one visit.

No call-backs. No remediation. The homeowner moved in with a system that matched what we promised on paper.

The earlier we're in, the cleaner every phase runs.

See our ductwork installation

Third-party verification

HERS Testing Is a Requirement, Not an Add-On, Here's How We Handle It

HERS testing is mandatory on California new construction. We coordinate it as part of the install.

HERS testing, Home Energy Rating System field verification, is the third-party inspection that confirms your duct leakage rate and refrigerant charge meet Title 24 standards. The building department won't issue a final certificate of occupancy without a passing HERS report.

We schedule the HERS rater during rough-in testing, before drywall goes up. If the pressure test reveals an issue at that stage, we fix it without opening finished walls. Coordinating the rater visit during our post-installation walkthrough keeps the builder's timeline intact. One visit. One pass. Move on.

See duct testing and sealing

Phase by phase

New Construction HVAC Installation: Phase by Phase

Our process runs in four phases, each with a clear checkpoint before the next begins.

1. 1

   Phase 1: Design & Permitting

   We review the architectural plans and run the Manual J load calculation. We identify supply and return locations, equipment placement, and duct routes. Manual D duct design follows. We pull the mechanical permit through LADBS before any work starts. This phase happens before framing is complete whenever possible.

2. 2

   Phase 2: Rough-In Installation

   Ductwork is installed per the Manual D layout. Equipment is staged and rough-in connections are made. We coordinate with the general contractor on sequencing so our rough-in doesn't stall electrical or plumbing inspections.

3. 3

   Phase 3: Equipment Startup & Pressure Testing

   Once the structure is ready, equipment is set and commissioned. Duct pressure testing is performed to confirm leakage is within Title 24 limits. Refrigerant charge is verified. Airflow at each register is measured against the Manual J targets.

4. 4

   Phase 4: HERS Verification & Final Sign-Off

   We schedule the HERS rater for field verification. They confirm duct leakage, refrigerant charge, and insulation. A passing HERS report goes to LADBS, clearing the mechanical inspection for certificate of occupancy.

Service area

New Construction Projects We Serve Across Greater Los Angeles

Mister Cool California installs HVAC on new builds from the coast to the Inland Empire.

We serve new construction projects in Los Angeles, Burbank, Glendale, Pasadena, Santa Monica, Culver City, Long Beach, Torrance, Hawthorne, Inglewood, Downey, and Carson. We also cover Anaheim, Santa Ana, Irvine, Fontana, Ontario, Rancho Cucamonga, and San Bernardino. If you're building in Greater LA, we're already working near you.
