Clean Air in Every Room, Not Just the One With the Purifier

HEPA stands for High-Efficiency Particulate Air, a performance standard, not a brand. A true HEPA filter captures at least 99.97% of particles as small as 0.3 microns in diameter. That size matters because 0.3 microns is where particles are hardest to trap. Wildfire smoke, pollen, pet dander, and some bacteria all fall in that range. A portable unit handles one room. A ducted HEPA system handles the whole house.

See air purifier installation

Local conditions

Los Angeles Homes in the Wildfire Smoke Corridor Deserve Better Air

Mister Cool California serves the communities that see the worst wildfire smoke every year.

Pasadena, Burbank, Glendale, Rancho Cucamonga, Fontana, and San Bernardino sit directly in the paths where smoke from foothill and inland fires settles and lingers. The SCAQMD, the South Coast Air Quality Management District, the regulatory agency overseeing air quality across LA, Orange, Riverside, and San Bernardino Counties, issues AQI health advisories during these events. "Unhealthy" ratings arrive multiple times a year now.

Closing windows keeps some of it out. Standard one-inch furnace filters do almost nothing against fine particulate matter. PM2.5, fine particulate matter, the specific particle category that HEPA systems target, passes right through low-rated filters and cycles back into the air your family breathes. That is the gap a whole-home HEPA filtration unit closes.

How wildfire smoke affects your HVAC

Diagnostic story

The Static Pressure Check That Changes Everything

Every HEPA installation we do starts with a measurement, before any equipment is specified.

Here is what the assessment process looks like in practice.

The first step is measuring static pressure, the resistance to airflow inside the duct system, measured in inches of water column. Every blower motor has a rated static pressure limit. A true HEPA filter adds significant resistance, sometimes double or triple what a standard filter creates. If that resistance pushes the system past its operating range, the air handler works harder, moves less air, and delivers less of the filtration benefit the homeowner paid for.

We take that measurement before we spec any equipment. Before anything is ordered. Before a cabinet is sized.

Once we confirm the blower motor can handle the load, we select a whole-home filtration unit, a media filtration cabinet installed in-line with the HVAC system, between the return air duct and the air handler. That position puts every cubic foot of recirculated air through the filter.

This is also where the MERV rating becomes important to explain. MERV, the Minimum Efficiency Reporting Value, is a scale from 1 to 16 measuring how effectively a filter captures particles. A MERV 16 filter is not the same as a true HEPA filter. HEPA is above the MERV scale entirely. We confirm the equipment we install actually meets the standard the label claims.

I've walked through homes in Alhambra, Burbank, and Torrance where this compatibility step was skipped. The result in each case was the same: weak airflow at every register, an overworked blower motor, and reduced filtration benefit because less air was passing through the cabinet per hour. The static pressure assessment is what keeps the rest of the installation honest.

See blower motor repair

Before any work starts

One Question Comes Up Every Time, Here Is the Straight Answer

Most existing HVAC systems can support a whole-home HEPA unit with the right preparation.

The concern is valid. HEPA filters create more airflow resistance than standard filters. But blower motor compatibility is a diagnostic question, not a guess. The question is whether the existing air handler produces enough static pressure to push air through a high-resistance HEPA filter while maintaining adequate flow to every register.

We measure that directly. Some systems need a blower motor upgrade. Some need a correctly sized cabinet. In older LA-area homes with original air handlers, the answer is rarely "this can't be done." It is usually "here is what it takes to do it right." We walk through that with every customer before a proposal goes out. No surprises at installation.

See indoor air quality services

The installation, step by step

How the Installation Process Works

Four steps take a home from a standard filter to whole-home HEPA filtration.

1. 1

   We test the existing HVAC system for static pressure and blower motor capacity. This tells us the resistance budget available for the new filtration cabinet. We also confirm duct sizing and return air layout.

2. 2

   Based on the assessment, we select a whole-home HEPA filtration unit matched to the system's airflow and pressure ratings. We confirm the equipment meets true HEPA standards, 99.97% capture at 0.3 microns, not just a high-MERV claim.

3. 3

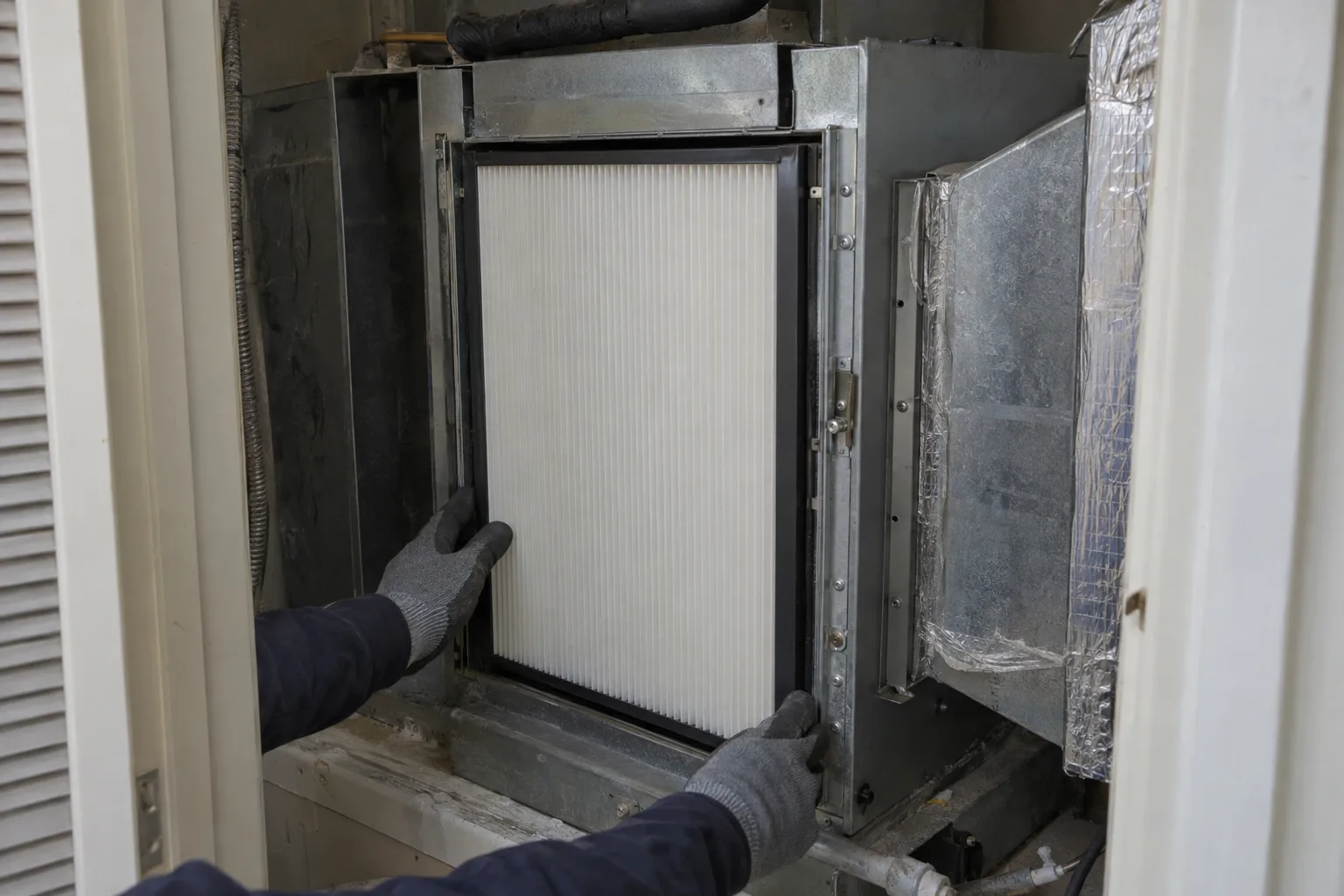

   The filtration cabinet is installed between the return air duct and the air handler. This position puts all recirculated air through the filter on every pass. We seal connections to prevent bypass air, unfiltered air that skips the filter through gaps in the installation.

4. 4

   After installation, we measure airflow at the supply registers throughout the home. Every register should hit adequate flow. If any register reads low, we investigate the cause before closing out the job. The SCAQMD's AQI advisories don't care about good intentions, only results.
