Ductless mini-split installation in Los Angeles

Mini-Split Installation Gives Los Angeles Homes Flexible, Efficient Cooling Without Ductwork

A ductless mini-split system delivers full comfort to any room without requiring existing ductwork.

A mini-split connects an indoor head unit to an outdoor condenser through a small refrigerant line set: no duct runs, no ceiling cuts, no connection to a central system required. It's the right call for garage conversions, backyard ADUs, older bungalows, and room additions throughout Los Angeles. One outdoor unit. One or more indoor heads. Each zone controls its own temperature independently.

Mister Cool California installs ductless mini-split systems across the greater LA area. All work is performed by our eight trained crews under CSLB C-20 license #1143117.

Book a site visit Call (323) 770-7737
Mister Cool California technician installing a ductless mini-split head unit at a Los Angeles home

Local conditions

Los Angeles ADUs and Older Homes Have a Cooling Problem Mini-Splits Solve

LA's ADU construction boom created a cooling challenge that window units don't solve well.

An ADU, an Accessory Dwelling Unit, meaning a secondary living space added to a single-family property such as a converted garage or backyard studio, is a real investment. Most ADUs in Los Angeles go up fast. Ductwork never enters the conversation because there's no practical way to connect the new structure to the main home's HVAC system.

The window unit becomes the default. It's loud. It blocks natural light. It makes a finished ADU feel unfinished.

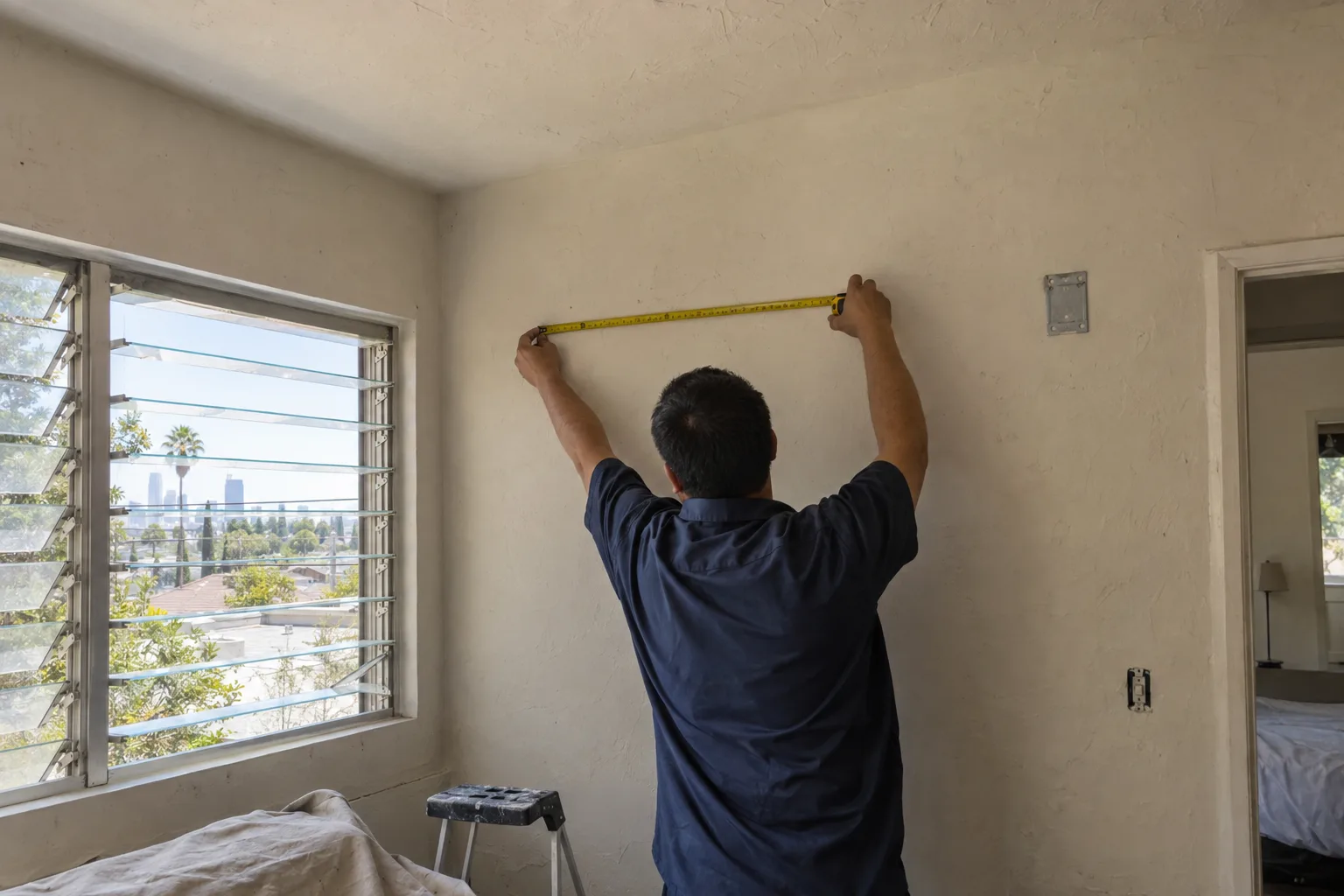

A technician measuring an interior stucco wall near the ceiling inside a Los Angeles home, assessing where a mini-split head unit will be mounted

In Silver Lake, Highland Park, and Culver City, we're often working with 1920s and 1930s bungalows where wall cavities are narrow, attic access is limited, and the exterior aesthetic matters to the homeowner. Planning the line set routing before any penetration happens is the only way to get an installation that looks intentional rather than added on.

Compare central AC and mini-splits

On the job

How a Real Mini-Split Installation Comes Together on an LA Property

Every installation we complete starts with a site walkthrough, not a sales pitch.

Here's what actually happened on a job we ran in West Hollywood. The homeowner had finished a detached garage conversion with good natural light and proper insulation. The window unit they'd been running was undersized and loud enough to hear through the wall.

We started with a full look at the space: square footage, ceiling height, window placement, and sun exposure. West Hollywood properties often carry west-facing exposures, which means afternoon heat load runs higher than square footage alone suggests. We sized the indoor head unit, the evaporator, meaning the wall-mounted unit that delivers conditioned air to the room, accordingly. Undersizing a unit on a garage conversion means it runs constantly and never catches up.

Next came line set routing. The line set is the insulated copper tubing that carries refrigerant between the indoor head and the outdoor condenser unit. We mapped a path along the exterior wall that kept the run short, cleared the neighbor's sightline, and ended at a condenser placement with full airflow clearance on all sides.

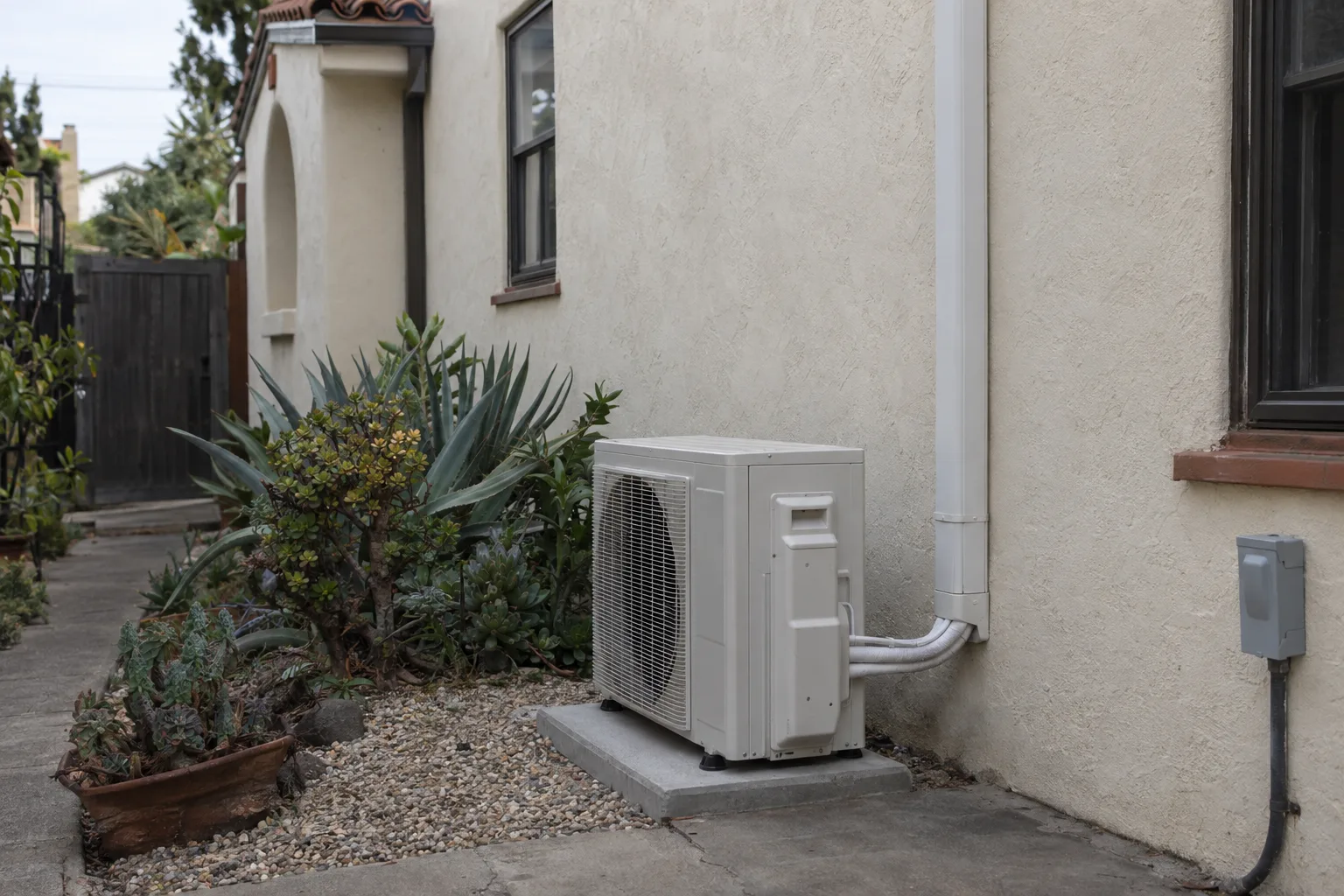

A ductless mini-split outdoor condenser unit installed on a concrete pad beside a stucco wall in a Los Angeles side yard, with a white line-set cover running up the wall

Before any line set connection is made, our installers perform refrigerant line set flaring, shaping the copper ends into a precise cone form for a leak-free seal at the service valves. Improper flaring is the most common source of refrigerant leaks in new mini-split installations. We check every flare before the system is charged.

The finished installation had no visible line set exposure from the street. The head unit sat at the correct height for even airflow distribution. The outdoor condenser unit, the compressor-containing unit connected to the indoor head, was placed on the building's north side for quieter operation with better clearance. System test showed it hitting setpoint in under twelve minutes on a 91°F afternoon.

Your options

Single-Zone Now, Multi-Zone Later: Los Angeles Homeowners Don't Have to Choose

A multi-zone system lets you start with one head unit and expand later off the same outdoor condenser.

This comes up constantly on LA jobs. A homeowner wants to cool the new ADU now but is also thinking about adding a head unit to the primary bedroom next year. They don't want to pay for two outdoor condensers.

A multi-zone system, a single outdoor condenser connected to two or more indoor head units in separate rooms, solves that. We size the outdoor unit for the eventual full load, install the first head unit now, and leave the system expansion-ready. Each zone still controls its own temperature independently.

If you only need one space cooled, a single-zone system is more efficient and simpler to maintain. The right answer depends on how many spaces you're addressing and whether you're likely to expand. We lay both options out clearly so you can make the call with full information.

Explore multi-zone mini-split systems

Our standards

Our Standards for Every Ductless Mini-Split Installation in Los Angeles

We plan the placement of every component before any wall penetration happens. That planning includes:

  • Head unit placement: height, airflow direction, clearance from obstructions. The indoor head unit position affects both comfort and efficiency. We confirm placement before drilling.
  • Line set routing: shortest viable path, exterior aesthetic considered, sleeve through wall done clean with proper weatherproofing.
  • Condenser placement: airflow clearance on all sides, reduced noise exposure for neighboring units, protection from direct west-facing sun.
  • Electrical load verification: confirmed against your panel capacity before the condenser is connected.
  • Refrigerant charge and leak check: every system is charged, tested, and verified before we leave.
  • SEER2 rating disclosure: the SEER2 rating is the 2023 federal efficiency metric for mini-split cooling performance. We install systems that exceed California's minimum requirements and disclose the rated efficiency of every unit we recommend.
Book a site visit

The installation, step by step

From Site Visit to System Startup: Our Installation Process

Our installation follows a defined sequence so nothing gets skipped.

  1. Site Assessment First

    We visit the property before any equipment is ordered. We measure the space, assess sun exposure and insulation quality, check the electrical panel, and map the intended line set path. If there are permit requirements under LA Building and Safety, we identify them at this stage, not after the unit is on the wall.

  2. Installation

    The indoor head unit is mounted at the planned location. The wall penetration is made, sleeved, and sealed. The line set is run and secured. Copper ends are flared and connected at both the indoor head and the outdoor condenser unit. Electrical connections are completed. The condensate drain, the line that removes moisture collected by the indoor unit, is routed to an appropriate termination point. On LA jobs, we often route condensate to a dry well or exterior drain rather than a utility sink, depending on the ADU layout.

  3. System Verification

    The system is powered on and refrigerant pressures are verified against manufacturer specifications. We run a full heating and cooling cycle. Airflow is measured at the head unit. We test the remote and confirm thermostat response. We check for any refrigerant leak at the flare points before closing out the job.

Read about Los Angeles HVAC permits

Service area

Neighborhoods We Serve Across Los Angeles

Mister Cool California installs mini-split systems throughout the greater LA area.

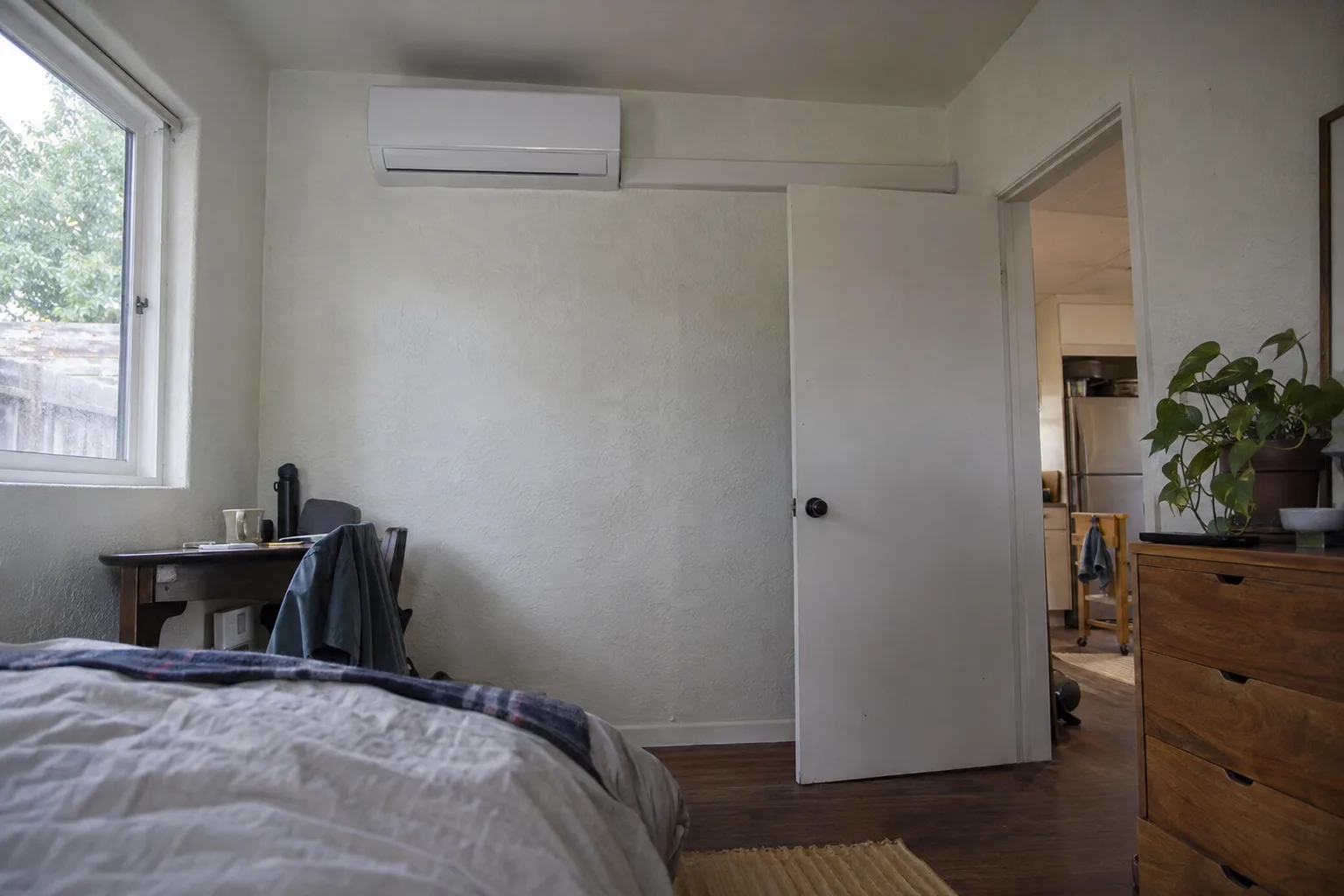

A wall-mounted ductless mini-split indoor head unit installed high on a white stucco wall inside a small Los Angeles ADU, with a tidy line-set cover running down the wall

We cover West Hollywood, Culver City, Silver Lake, Highland Park, Beverly Hills, Burbank, Glendale, Santa Monica, Inglewood, Hawthorne, Pasadena, Torrance, and surrounding communities. We also install throughout Long Beach, Anaheim, Irvine, and the Inland Empire. If your ADU, addition, or older home is in greater Los Angeles, we're in your area.

Frequently Asked Questions

The questions homeowners ask before a ductless installation is scheduled. If yours is not here, call and ask the crew directly.

Does a mini-split installation in an ADU require a permit from LA Building and Safety?

Yes, most mini-split installations in Los Angeles require a mechanical permit through LA Building and Safety. Electrical work associated with the condenser connection typically requires a separate electrical permit. We identify permit requirements during the initial site walkthrough, before any equipment is ordered or wall penetrations are made.

How long does a ductless mini-split installation take from site visit to system startup?

A single-zone installation typically takes one day once permits are in hand and equipment is on-site. The site assessment visit happens first and takes one to two hours. Multi-zone systems with multiple indoor heads may require two days depending on line set routing complexity.

Can I add a second indoor head unit later without replacing the outdoor condenser?

Yes, provided we size the outdoor condenser for the full eventual load during the initial installation. We offer multi-zone systems specifically for this reason. Starting with one zone now and adding a second later is a common approach on Los Angeles ADU jobs: it avoids paying for two separate outdoor units.

Why does line set routing matter for how the finished installation looks?

Poorly routed line sets run exposed across exterior walls, creating an industrial appearance. We map the line set path before any wall penetration happens. Routing decisions account for exterior aesthetics, neighbor sightlines, and run length, because longer line sets reduce system efficiency and increase the chance of refrigerant loss at connection points.

What makes your mini-split installation different from another HVAC company's process?

Planning comes before drilling. We assess head unit placement, line set routing, condenser placement, and electrical load during the site visit, not during installation. Every copper connection is flared on-site and inspected before the system is charged. Improper flaring is the most common source of refrigerant leaks in new mini-split installations, and we verify every connection before closing out the job.

Read all HVAC questions

Ready to Install a Mini-Split System That Fits Your Space?

Mister Cool California installs ductless systems that look and perform like they belong in the space.

Call us at (323) 770-7737 or email info@mistercoolcalifornia.com to schedule a site visit. We'll assess your space, walk through your single-zone and multi-zone options, and give you a clear plan before any work begins.
